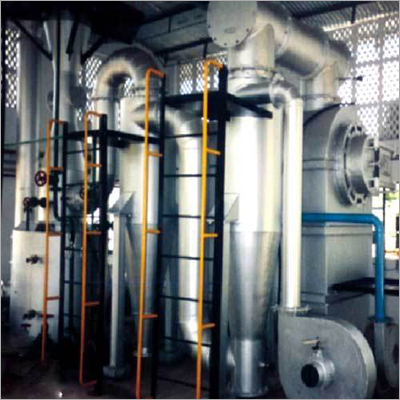

Installation- Quantum Engineering, Baroda, Centralized Bio-medical Incinerator for Baroda Medical Assn
Capacity- 100 kg per hour.
Operating Fuel- LDO/HSD/GAS
Operating Temp- Primary Chamber-Min 850 C
Operating Temp- Secondary Chamber-Min 1050 C
Manufacturing Range- 10-500 Kg per hour.
Operating Temp- 1200 C Max.
Operating Fuels- LDO/HSD
Bio-medical incinerator consists of following
Primary chamber operating at Min 850 degree C -Refractory Lined and Backed by Cera Wool insulation with Primary automatic Oil burner.
Secondary chamber operating at Min 1050 C-Refractory Lined with silimanite bricks and backed by Cera Wool insulation with secondary automatic oil Burner.
Fuel gas temperature diluter for feeding extra fresh air to hot fuels coming from at very high temp from secondary chamber to reduce scrubbing losses by reducing temp of fuels going to scrubber.
Cyclone separator - to reduce choking of scrubber
Wet scrubbing system consist of Vertical venture Scrubber, Scrubbing Pump and Scrubber Tank
Induced draft fan creates Negative pressure in combustion chamber to sustain further Incineration and to deliver fuels to chimney with controlled SPM, SO2, NOX and others as per GPCB Norms
Self supported 30 meter chimney with sampling point.
Primary chamber is designed for maximum temp of 1000 C and secondary chamber is designed for Maximum temp of 1200 C. waste is loaded to primary chamber through hinged door. Hot fuels from primary chamber are passed to secondary chamber where it is incinerated at 1100 c temp.
